Set up your deck

1 · Find your NebulaDeck

Keep the screen showing its QR code, then pick NebulaDeck in the Bluetooth dialog.

2 · Choose your network

3 · You're online

Your NebulaDeck is on at nebuladeck.local (). In a few seconds it switches to “Agent not connected”.

Next, set up your agent. If nebuladeck.local doesn't work on your computer, set up your agent with the IP instead.

To change network later, tap the logo on the screen → Forget WiFi.

1 · Connect the board

Plug the board in with a USB data cable. Both boards work with the same button below: it detects which one you have.

• SC01 (ESP32): nothing else to do, it switches to install mode by itself.
• SC01 Plus (ESP32-S3): usually works as is too. If the install can't connect, put it in download mode: on the DEBUG header jumper BOOT to GND, then press RST (the screen may stay dark).

2 · Install

The stable release. Updates arrive over WiFi when a new version is released.

Be patient: installing takes a couple of minutes, and the Erasing step can sit still for a while before progress moves. That's normal. Keep this tab open and the cable connected until it says it's done.

In the browser dialog pick the board's port: usbmodem / Espressif for the SC01 Plus, usbserial / CP210x or CH340 for the SC01. Installing replaces whatever is on the board.

3 · Finish

1. If you used the BOOT jumper, remove it and press RST. The screen shows a welcome QR code.
2. Connect it to WiFi: continue with Connect to WiFi.

Device address

Where your agents reach the screen. Keep nebuladeck.local, or use the IP from the screen's logo menu if .local names don't work on your network. Everything below updates as you type.

From a terminal:

Claude Code · skill

The skill tells Claude when to update the screen and how to ask you questions on it. Run this in a terminal, then start a new Claude Code session:

mkdir -p ~/.claude/skills/nebuladeck && cd ~/.claude/skills/nebuladeck && \
  curl -fsSL {{BASE}}SKILL.md{{SED}} > SKILL.md && \
  curl -fsSL {{BASE}}hooks.json{{SED}} > hooks.json

Or download SKILL.md into ~/.claude/skills/nebuladeck/.

Optional · live status while chatting

Hooks show “Claude connected” with “Thinking…”, “Running a command…”, “Needs you” and “Ready” in every session. Each one is a background curl that sends only the event name. With the skill installed, ask Claude:

Install the NebulaDeck hooks from the nebuladeck skill's hooks.json into my ~/.claude/settings.json.

Or merge hooks.json into ~/.claude/settings.json yourself.

Codex CLI

Add the instructions to your global ~/.codex/AGENTS.md (or to AGENTS.md in one repo):

mkdir -p ~/.codex && cat >> ~/.codex/AGENTS.md <<'EOF'

{{INSTR}}
EOF

Codex runs commands in a sandbox with networking off by default, so the curl calls fail silently. Allow it in ~/.codex/config.toml:

[sandbox_workspace_write]
network_access = true

Gemini CLI

Add the instructions to your global ~/.gemini/GEMINI.md (or to GEMINI.md in one repo):

mkdir -p ~/.gemini && cat >> ~/.gemini/GEMINI.md <<'EOF'

{{INSTR}}
EOF

If you run Gemini CLI with its sandbox on, make sure it can reach your local network.

Cursor

For every project: Cursor Settings → Rules → User Rules, and paste:

{{INSTR}}

Or for one project, from its folder:

mkdir -p .cursor/rules && cat > .cursor/rules/nebuladeck.mdc <<'EOF'
---
description: NebulaDeck desk status screen
alwaysApply: true
---
{{INSTR}}
EOF

The agent runs the curl commands in Cursor's terminal; approve them, or allow curl in your auto-run settings.

GitHub Copilot (agent mode)

Add the instructions to the repo's .github/copilot-instructions.md, from the repo folder:

mkdir -p .github && cat >> .github/copilot-instructions.md <<'EOF'

{{INSTR}}
EOF

Copilot runs the curl commands in the editor's terminal, so agent mode needs permission to run them.

Any other agent

Anything that can run curl can drive the screen. Paste this into your agent's instructions (rules file, system prompt, custom instructions):

{{INSTR}}

Full API: docs/PROTOCOL.md.

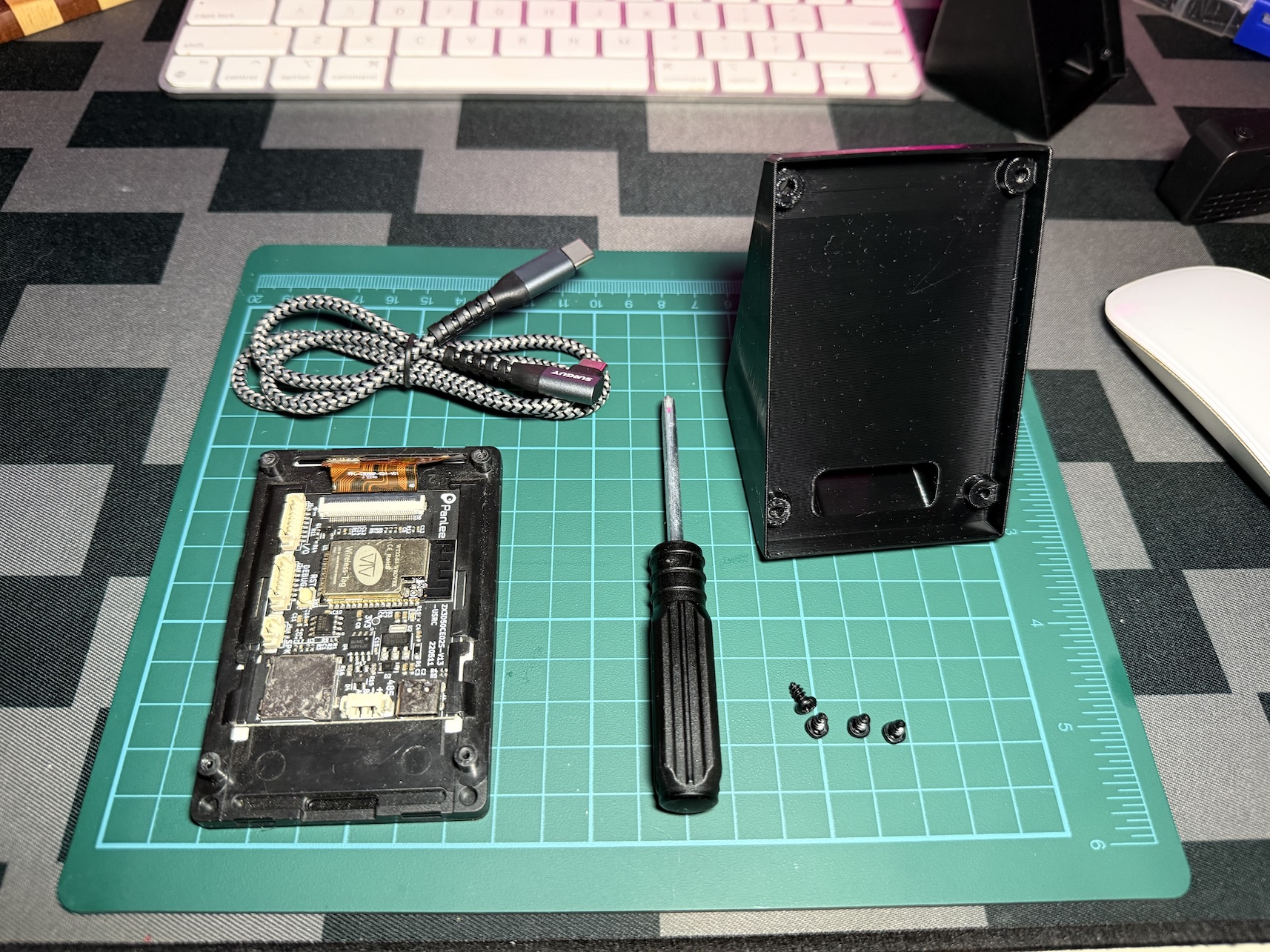

What you need

• 1×
  Panlee SC01 Plus or SC01 · in its case, back cover off
• 4×
  M3 × 5 mm self-tapping screws
• 1×
  USB-C to USB-C cable · one end right-angled
• 1×
  Printed stand · plus a small Phillips screwdriver

Print the stand

The stand is a single part. Get the 3MF for a ready-made print project, or the STL to slice it yourself.
